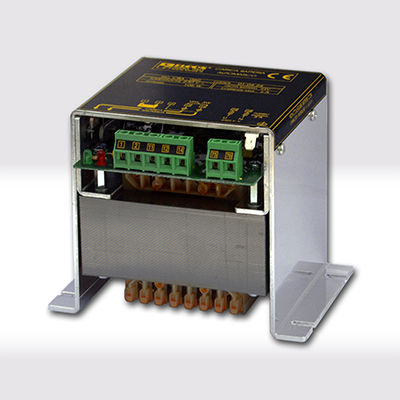

CBA-030 - CBA-060

AUTOMATIC BATTERY CHARGERS FOR LEAD BATTERIES

3A or 6A automatic battery chargers, with decoupling from the mains transformers, for installation inside electric switchboard.

KEY FEATURES

- Automatic charge in three levels (RAPID with current control, INTERMEDIATE or MANTENANCE with voltage control).
- Warning alert for short cicuit, polarity inversion, lowering (50%) of the battery voltage.
- Output for remote indicator lights.

IDENTIFICATION DATA

Type Code
CBA-030 230/12 V 3A 00010413
CBA-030 230/24 V 3A 00010414
CBA-060 230/12 V 6A 00010423
CBA-060 230/24 V 6A 00010424

DOWNLOAD

Documents
Instruction and user manual CBA-030
Instruction and user manual CBA-060
