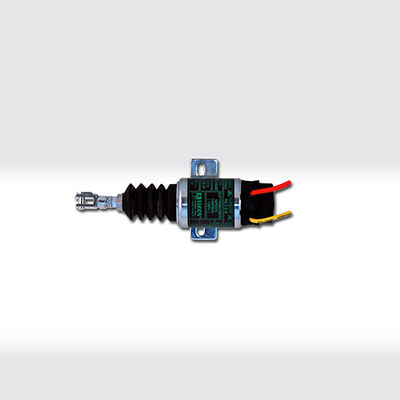

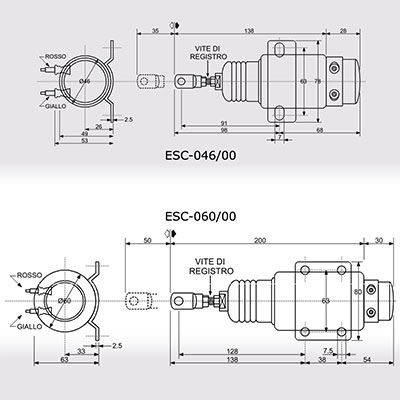

ESC-046/00 - ESC-060/00
PULL ELECTROMAGNETS FOR ENGINE STOP
These electromagnets are traction only and for continuous use (with dual internal coil). The ESC-046/00 and the ESC-060/00 are of two different sizes with different power.FUNCTIONING
| The solenoid stops the engine when it is off if it is connected to the proper lever. Supply the HOLDING COIL with the yellow wire; while the engine is being started up the solenoid is excited with the POWER COIL through the red wire. At the end of its stroke an internal contactor disconnects the power coil leaving the solenoid excited with a continuous power supply with minimal power consumption (0.6A at 12V - 0.3A at 24V) and without overheating. Disconnecting the HOLDING COIL (yellow wire), the lever connected to the solenoid is free to return to the stop position. |
IDENTIFICATION DATA
| Type | Code |
| ESC-046/00 12V | 00570201 |
| ESC-046/00 24V | 00570202 |
| ESC-060/00 12V | 00570211 |
| ESC-060/00 24V | 00570212 |
