NF-1100

AUTOMATIC CONTROL SWITCH-BOARD FOR DIESEL ENGINE

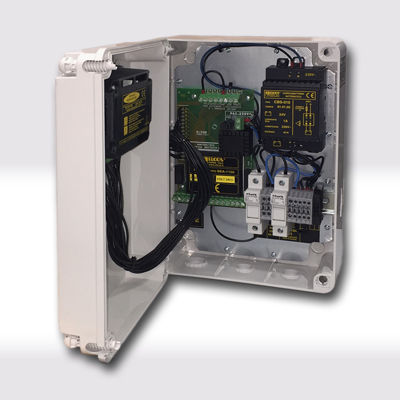

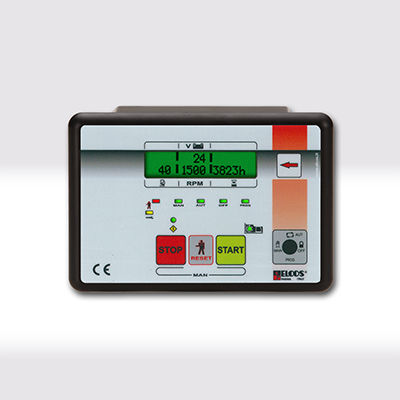

Automatic control panel for generic motor pump, equipped with control unit DCA-109 with digital instruments and alarms, on LCD display, fitted internally with 1A battery charger.

KEY FEATURES

- Digital instruments (battery voltmeter, total hour meter, partial hour meter, starting counter, starting failures counter, fuel level indicator, tachometer)
- Automatic faults surveillance with messages on the display.
- Texts in 6 languages: Italian, English, French, German, Spanish and Portuguese.
- Remote control (start and stop).
- Glow plugs preheating management or engine heating cooling.
- Clock for programming the starting or the stopping of the engine.
- Preventive maintenance warning.
- Programmable weekly selftest.
- Available fully programmable input for anomaly or inhibition protections.
- Possibility of starting the engine when the charge of the battery is low.
- Anomaly historical record (Including data from the last 100 occurred anomalies).
- Internal automatic battery charger.

IDENTIFICATION DATA

Type Code
NF-1100 12V
00022141
NF-1100 24V 00022142

DOWNLOAD

Documents
Instruction and user manual NF-1100
