RA-0501 - RA-1001 - RA-1501- RA-2501
WATER HEATERS FOR DIESEL ENGINES

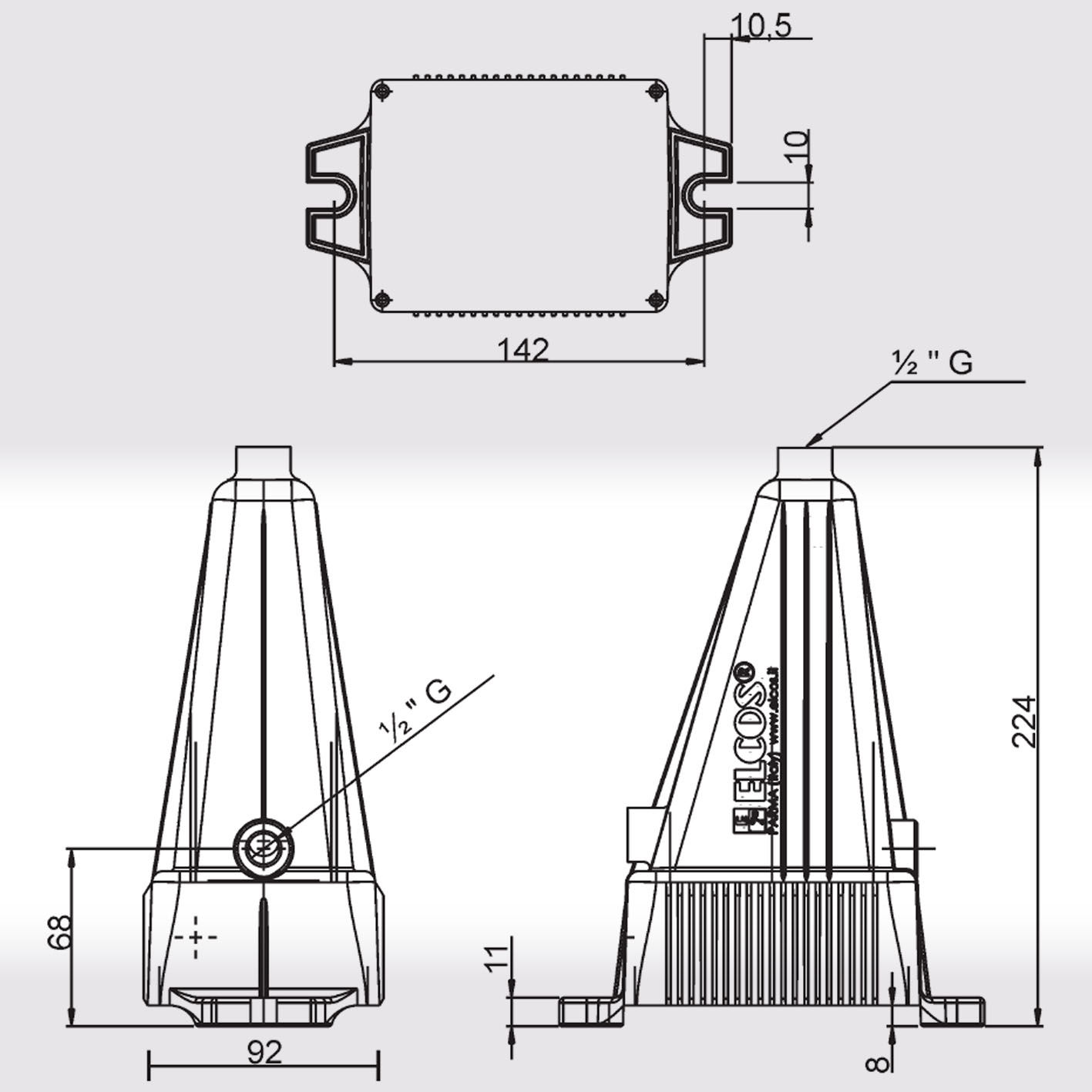

500W, 1000W, 1500W, 2500W heaters that prevent the cooling circuit temperature from falling below a certain value. This value is controlled by an internal thermostat. Made of a rugged aluminum body, cataphoresis painted, making it resistant to the chemical components of the coolant liquid. The water circulates using the thermosiphon principle. Provided with connection with ½" BSP hole.
| - Temperature maintained by an internal thermostat. |
| - Can be mounted directly onto the engine. |
| - Easy connection via cable. |
| - Drain plug of the cooling liquid. |
| - Optimum dielectric strength (2000v). |
| Type |
Power absorbed - Voltage |
|
Code |
| RA-0501 |
500 W - 230V |
1/2” BSP threaded hole |
00706168 |
| RA-1001 |
1000 W - 230V |
1/2” BSP threaded hole |
00706169 |
| RA-1001/110 |
1000 W - 110V |
1/2” BSP threaded hole |
00706172 |
| RA-1501 |
1500 W - 230V |
1/2” BSP threaded hole |
00706170 |
| RA-2501 |
2500 W - 230V |
1/2” BSP threaded hole |
00706173 |
